产品展示 >> 不锈钢一片式球阀
|
|
| |
|
|
|
|
尺寸：1/4"—4"
|
|
|
型号：Q11F-64
|
|
内螺纹连接：ANSI B2.1,BS 21,JIS
130203
|
|
精密铸造阀体
|
|
材料：SS304、SS316、CF8、CF8M、WCB
|
|

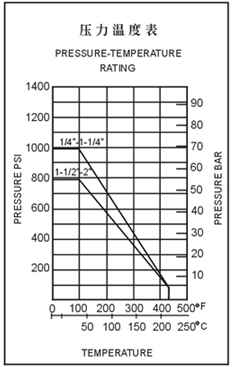

压力：800 PSI 1000PSI
|
|
|
|
|

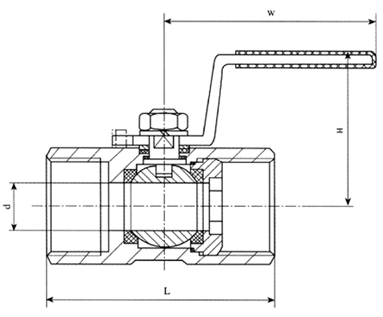

SIZE
|
d
|
L
|
H
|
W
|
KGS
|
|
1/4"
|
5
|
40
|
33
|
67
|
0.1
|
|
3/8"
|
7
|
45
|
36
|
67
|
0.115
|
|
1/2"
|
9
|
58
|
37
|
93
|
0.175
|
|
3/4"
|
12.5
|
60
|
42
|
93
|
0.25
|
|
1"
|
16
|
71
|
52
|
103
|
0.4
|
|
1-1/4"
|
20
|
78
|
56
|
103
|
0.6
|
|
1-1/2"
|
25
|
82.5
|
65
|
125
|
0.85
|
|
2"
|
32
|
100
|
70
|
125
|
0.9
|
|
|
