PN20
|

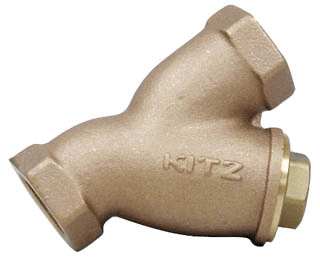

青铜丝扣Y形过滤器 KITZ 北泽
|
| Cast
Bronze Y-patern strainer Threaded
ends to BS21
|
|
|
|
|
最高工作压力
| 120℃压力变动小的水、油、气 |
2.1MPa(21bar) |
| 饱和蒸气 |
1.0MPa(1.0bar) |
材质[Materials]
|
零件[Parts]
|
材质
|
|
阀体[Body]
|
黄铜
|
|
阀盖[Bonnet]
|
黄铜
|
|
垫片[Gasket]
|
非石棉
|
|
过滤器[Screen]
|
304型不锈钢
|
沙格尺寸[Screen Dimensions]
|
阀门尺寸[Valve Size]
|
A
|
P
|
厚座[Thickness]
|
|
DN 10-20
|
1.4
|
2.4
|
0.3
|
|
DN 25-50
|
1.4
|
2.4
|
0.4
|
|
DN 65-80
|
1.5
|
2.5
|
0.5
|
尺寸 [Dimensions]
(mm)
|
DN
|
mm |
| 10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
|
|
inch
|
| 3/8 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
|
| L |
|
|
