JIS 10K
|

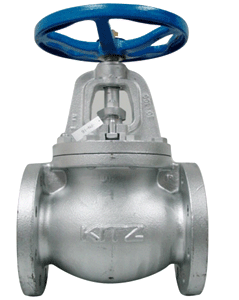

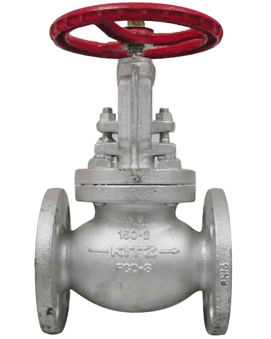

铸铁法兰截止阀(明杆式)
KITZ 北泽
|
|
Cast lron Globe Valve
(Outside screw &
yoke.rising stem)
Flenged ends
|
|
|
|
|
最高工作压力
|
120℃均衡水流
|
1.37MPa(13.7bar)
|
| 120℃水、油、气 |
0.98MPa(9.8bar) |
| 120℃气 |
0.20MPa(2.0bar)
|
| 饱和蒸气 |
0.69MPa(6.9bar) |
材质[Materials]
|
零件[Parts]
|
材质
|
|
阀体[Body]
|
灰铸铁
|
|
阀盖[Bonnet]
|
灰铸铁
|
|
阀杆[stem]
|
黄铜*1 13%Cr*2
304型*3不锈钢
|
|
阀瓣[Disc]
|
青铜*1 13%Cr*2
304型*3不锈钢
(DN40-DN50)/灰铸铁(DN65以上)
|
|
填料[Gland packing]
|
非石棉
|
|
垫片[Gasket]
|
非石棉
|
|
阀体防漏垫圈[Body seatring]
|
青铜*1 13%Cr*2
304型*3不锈钢
|
|
阀座防漏垫圈[Disc seatring]
|
青铜*1 13%Cr*2
304型*3不锈钢
|
|
手轮[Handwheel]
|
锌(压铸)[DN8-DN40] 铝(压铸)[DN50以上]
|
尺寸 [Dimensions]
(mm)
|
DN
|
mm
|
| 40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
|
|
inch
|
|
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
|
| L |
| 190 |
200 |
220 |
240 |
290 |
360 |
410 |
500 |
620 |
700 |
|
|
| H (全开) |
| 260 |
277 |
307 |
353 |
404 |
454 |
533 |
642 |
665 |
883 |
|
|
| D |
| 160 |
180 |
180 |
225 |
280 |
300 |
350 |
450 |
450 |
500 |
|
|
|
