400
|

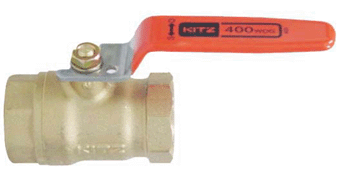

黄铜丝扣缩口径球心阀 KITZ
北泽
|
|
Forged Brass Ball Valve
Threaded ends to
BS21,Reduced bore
|
|
|
|
|
最高工作压力
|
压力变动小的水、油、气
|
2.75MPa(27.5bar)
|
| 150℃水、油、气 |
0.7MPa(7bar) |
材质[Materials]
|
零件[Parts]
|
材质
|
|
阀体[Body]
|
黄铜/青铜(DN100)
|
|
阀盖[Bdoy cap]
|
黄铜/青铜(DN100)
|
|
阀杆[Stem]
|
K-合金
|
|
球心[Ball]
|
黄铜
|
|
密封座[Ball seat]
|
聚四氟乙烯
|
|
O型圈[O-ring]
|
橡胶
|
|
手柄[Handle]
|
T,不锈钢(DN8-DN50)
球墨铸铁(DN65以上) TT,锌(压铸)
|
尺寸 [Dimensions]
(mm)
|
DN
|
mm
|
| 8 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
|
inch
|
| 1/4 |
8/3 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
|
| d 口径 |
| 10 |
10 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
|
| L |
| 50 |
50 |
65 |
68 |
79 |
86 |
96 |
109 |
127 |
153 |
179 |
|
| H |
| 45 |
45 |
45 |
50 |
55 |
60 |
65 |
75 |
91 |
105 |
124 |
|
| D |
| 80 |
80 |
100 |
100 |
130 |
130 |
130 |
150 |
200 |
300 |
400 |
|
|
